Supreme
Master Flush

Urinal water control unit. Be environmentally friendly with this leading edge water saving technology

Each kit comes complete with sensor, solenoid and battery pack or power pack adapter

  • Sensor operated
    Non touch, passive infrared detects and responds to movement to operate flush

  • Easy set ‘learn function’
    Easy customisable flush process for fast set up

  • Selectable ‘Pre-Flush’ and ‘Sanitary Flush’ to maintain hygiene
    Program your flush cycles to suit system and traffic. Direct feed or cistern, pre-flush, sanitary flush (adjustable)

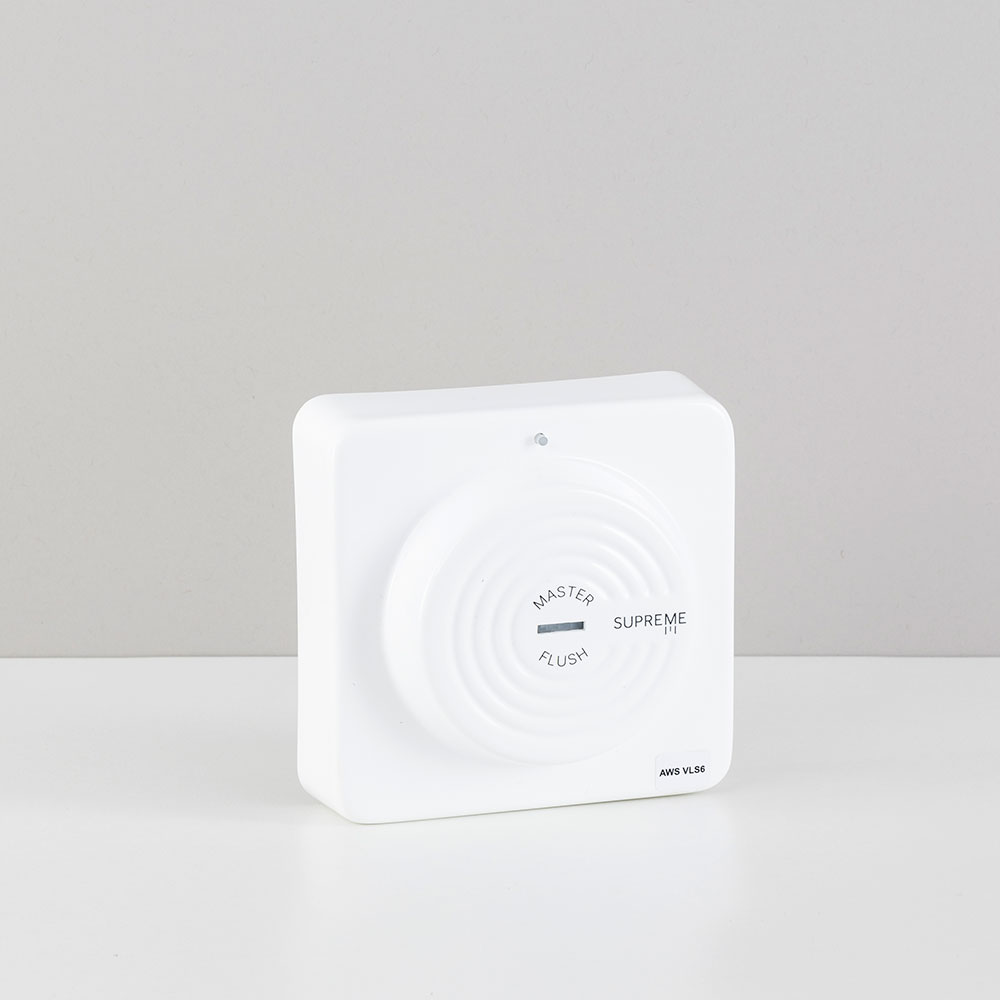

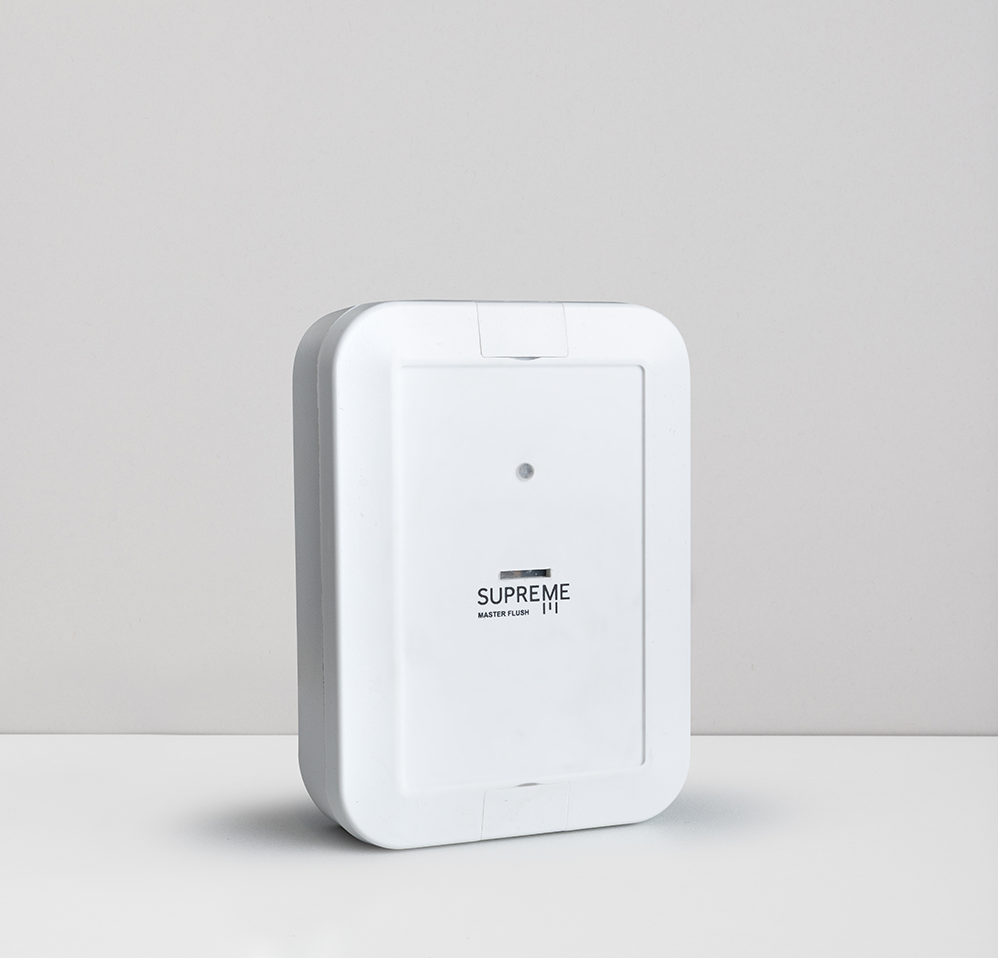

Supreme Master Flush

Categories: , ,

SPL’s products are available throughout New Zealand and overseas.
Call us on 0800 787 736 (Monday – Friday 8am to 4.30pm) and our team will direct you to the nearest reseller in your area.

Product Enquiry

  • Retrofit or New Build

    Upgrade to a non-touch, water efficient flush control system that can be retrofitted or install into new builds

  • Made in New Zealand

    Proudly NZ local with parts supply readily available and helpful support team

  • Multi-Feed Option

    Suitable for up to 3 single stall or cistern fed urinals with programmable flush cycles to accommodate all levels of traffic flows

Specification

Sensor
Passive infrared

Colour
Grey

Casing
UV resistant ASA

Power
9V alkaline battery OR optional 100 – 240V 50/60Hz AC (9VAC/DC 1A regulated power pack)

Printed Board
Micro chip

Solenoid Valve
9V DC latching, 0.2 – 5.0 bar pressure (20 – 500 kPa), Ballofix valve, 1/2” BSP male inlet – 1/2” BSP female outlet (WaterMark approved)

Flushing Cycle
Set via learn function, customisable duration between 3 – 300 seconds, plus pre-flush and sanitary flush options

Delay Before Flush
60 seconds – 6 hours

Dimensions
150mm (L) x 110mm (W) x 40mm (D) – sensor

76mm (L) x 55mm (W) x 78mm (H) – solenoid

Warranty
12 months (excludes battery)

Product Code
AWS400 (Battery) AWS400A (Mains)

  • Sensor

    Passive infrared

  • Power

    9V battery or 100-240V 50/60Hz AC

  • Flushing Cycle

    Set via learn button plus pre-flush and sanitary flush options

  • Suggested Applications

    Any cistern or direct feed urinal (new build or retrofit) in schools, public toilets, sports clubs, factories, offices

Downloads

Replacement Parts

You can buy replacement parts and consumables direct from our website.

Click through to our shopping cart.

View all
Supreme Master Flush Battery Pack

Supreme Master Flush Battery Pack

Product Code: AWS111

Master Flush Parts / Troubleshooting
