Sanela
Urinal Flush Control

Sanela Urinal Infrared Control

Urinal water control unit. Be environmentally friendly with this leading-edge water saving technology and create a more hygienic bathroom environment.

Wall mounted urinal infra-red flushing unit and integrated power supply (Mains 230V AC)

  • Touchless flush control
    System reacts to the user attendance in front of the urinal at a maximum distance of 0.7m, minimum stay time in active range is 7.5 secs

  • Hygienic and controls odour
    Keeps urinals fresh without the need for human intervention. Automatic janitor flush after 24 hours of non-use

  • Adjustable flushing time
    0.5 – 15.5 secs also possible to regulate water value with ball valve

Sanela Urinal Flush Control

Categories: , ,

Call us on 0800 787 736 (Monday – Friday 8am to 4.30pm) to discuss

Product Enquiry

  • Courtesy flush

    Water only flows after the user leaves active range

  • Adjustable parameters via remote

    Active range; Flush delay; Janitor flush

  • European design and manufacture

    Long standing European manufacturer - high quality electronics combined with elegant aesthetics

Specification

Power Supply
Mains 230V AC, 50Hz (input) 24V (output)

Location
Wall mounted above the urinal

Control
Infra-red sensor

Stainless Steel Cover Dimension
170 x 170 x 10mm

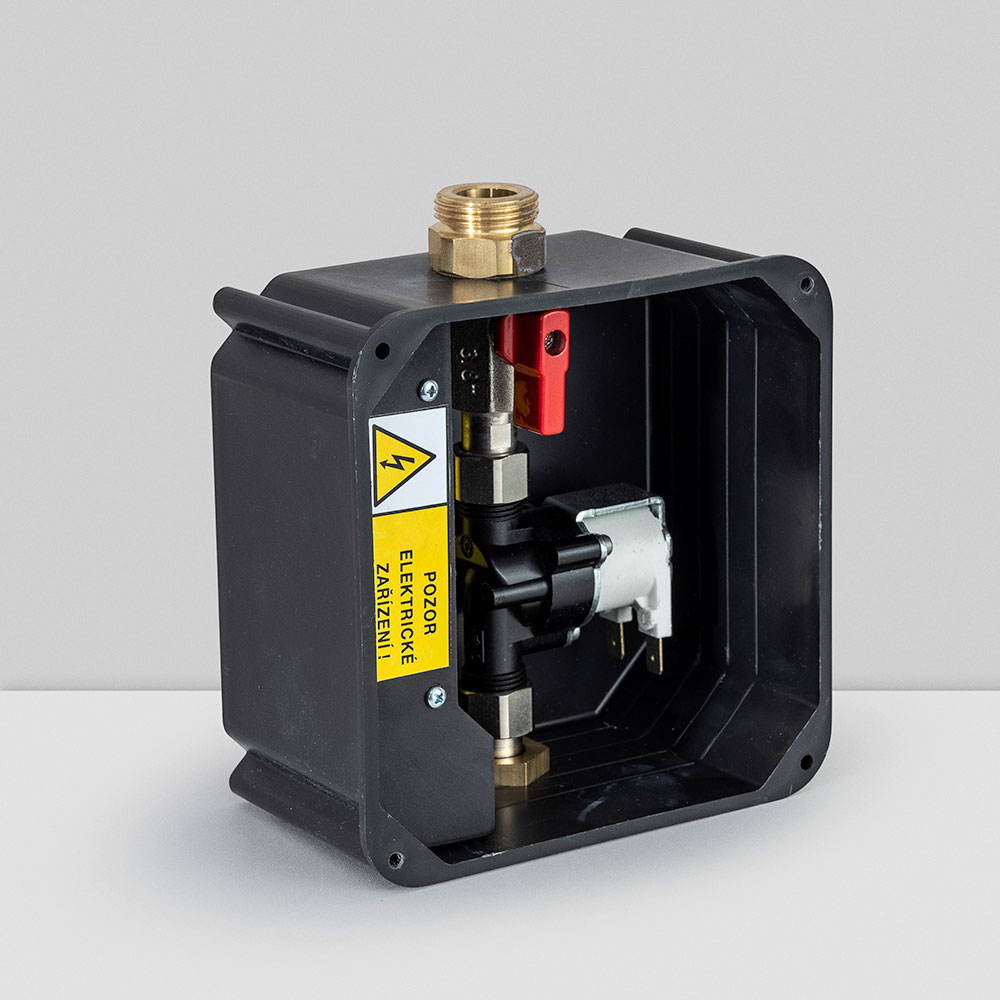

Mounting Box Dimension
140 x 140 x 75mm

Operating voltage
Mains 24V D, 7W

Active Range
0.6 – 0.75 m – system reacts to user infront of urinal at max distance of 0.7m & min stay time of 7.5secs

Flush Cycles
Adjustable 0.5 secs – 15.5secs
Hygiene Flush: 24hrs after last use

Recommended Flow Pressure
0.1 – 0.6 Mpa (1-6 Bar)

Rate of flow
18 L/min (inf. Data) – Possible to regulate flow via ball valve

Water Inlet
Male thread G 3/4″

Water Outlet
Male thread G 3/4″

Warranty
24 months

Product Code
SUI02AC

  • Location

    Wall mounted above the urinal (Stainless steel cover enables access to service valves)

  • Control

    Infrared sensor

  • Active Range

    0.6-0.75m

  • Suggested Applications

    Single stall urinals – shopping malls, hotels, airports, stadiums, public toilets, tourist operations, offices
